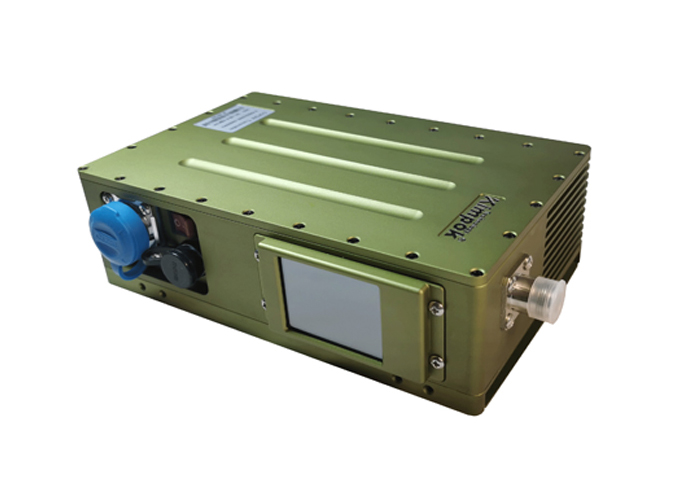

10 Watt Long Range Video Transmitter Wireless Mobile Video Digital Transmitter for Army Training
Long Distance Video Transmitter Description:
KP-WVT10 system is new generation of broadcast-quality good resolution image transmission and walkie-talkie system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8MHz), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and near real-time transmit high quality image in NLOS or complicated working conditions.Especial suitable for army training ,fire rescue, marine remote control security application.
Feature:
| COFDM modulation,good stability. | H.264 video compression,DVD quality |
| Video and walkie-talkie transmission | High-speed mobile transmission |
| Super long range transmit distance | Works well in NLOS & fast-moving conditions |
| LCD screen shows parameters and working status | Dual aerials connectors |
| Low delay | 450km/h max speed |
Specifiations:
| Frequency | 138-4400MHz (option),but only 100MHz space for user |
| RF power | 10Watt (adjustable) |
| Power supply | DC11-14.5V/2.7A (aviation plug) |
| Modulation | COFDM 2K QPSK |
| RF Bandwidth | 2/2.5/4/8MHz(adjustable) |
| FEC | 1/2 2/3 3/4 7/8 (option) |
| Guard Interval | 1/32 1/16 1/8 1/4(option) |
| Data Encryption | AES 128/256 Bits |
| Max speed | 450km/h |
| Video input | BNC/RCA |
| Audio input | standard Aviation plug, support two-way intercome |
| Video compression format | H.264 |
| Video Resolution | standard 720P ,1280*720 |
| RF Interface | N (two aerial connectors) |
| Work environment | -40℃~70℃ |
| Transmission Distance | 10-25KM NLOS |
| Case Material Aluminum | black |
| Size | 200*130*60mm |
| Weight | 2.5kg |
COFDM Wireless Transmitter and Receiver Application:
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5 engineers provide professional system design and construction;
6. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
