10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System

Product Categories

Kimpok Technology Co., Limited

Contact Now

10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System

Name: 10 Watt Manpack COFDM Video Transmitter H264 Walkie Talkie Transmission System
Brand: Kimpok
Price: 1 USD

Quality 10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System wholesale

Brand Name : Kimpok

Model Number : KP-WVT10

Certification : CE/FCC

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 1,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Frequency : 138-4400MHz (option),but only 100MHz space for user

RF Power : 10Watt (adjustable)

Power Supply : DC11-14.5V/2.7A (aviation plug)

Distance : Appr. 5km NLOS (for manpack)

Video Resolution : standard 720P ,1280*720

Dimension : 200*130*60mm

Contact Now

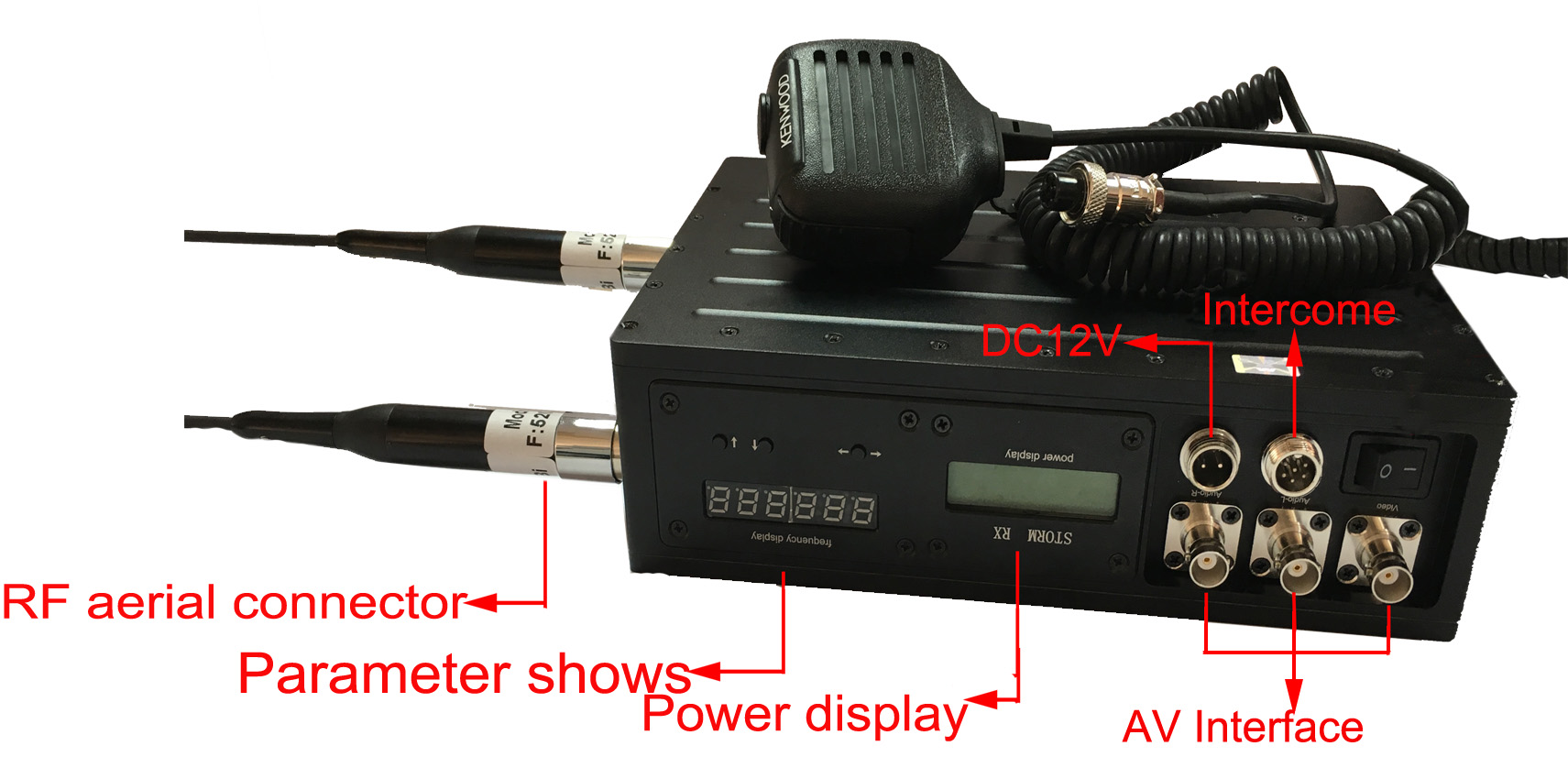

10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System

Two-way Communication COFDM Transmitter:

KP-WVT10 system is new generation of broadcast-quality good resolution image transmission and walkie-talkie system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8MHz), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and near real-time transmit high quality image in NLOS or complicated working conditions.Especial suitable for army training ,fire rescue, marine remote control security application.

Feature:

COFDM modulation,good stability.
H.264 video compression,DVD quality
Video and walkie-talkie transmission;
Super long range transmit distance.
Works well in NLOS & fast-moving conditions
LCD screen shows parameters and working status.
Dual aerials connectors.
Low delay

Specifiations:

Frequency	138-4400MHz (option),but only 100MHz space for user
RF power	10Watt (adjustable)
Power supply	DC11-14.5V/2.7A (aviation plug)
Modulation	COFDM 2K QPSK
RF Bandwidth	2/2.5/4/8MHz(adjustable)
FEC	1/2 2/3 3/4 7/8 (option)
Guard Interval	1/32 1/16 1/8 1/4(option)
Data Encryption	AES 128/256 Bits
Max speed	450km/h
Video input	BNC/RCA
Audio input	standard Aviation plug, support two-way intercome
Video compression format	H.264
Video Resolution	standard 720P ,1280*720
RF Interface	N (two aerial connectors)
Work environment	-40℃~70℃
Transmission Distance	10-25KM NLOS
Case Material Aluminum	black
Size	20013060mm
Weight	2.5kg

10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System

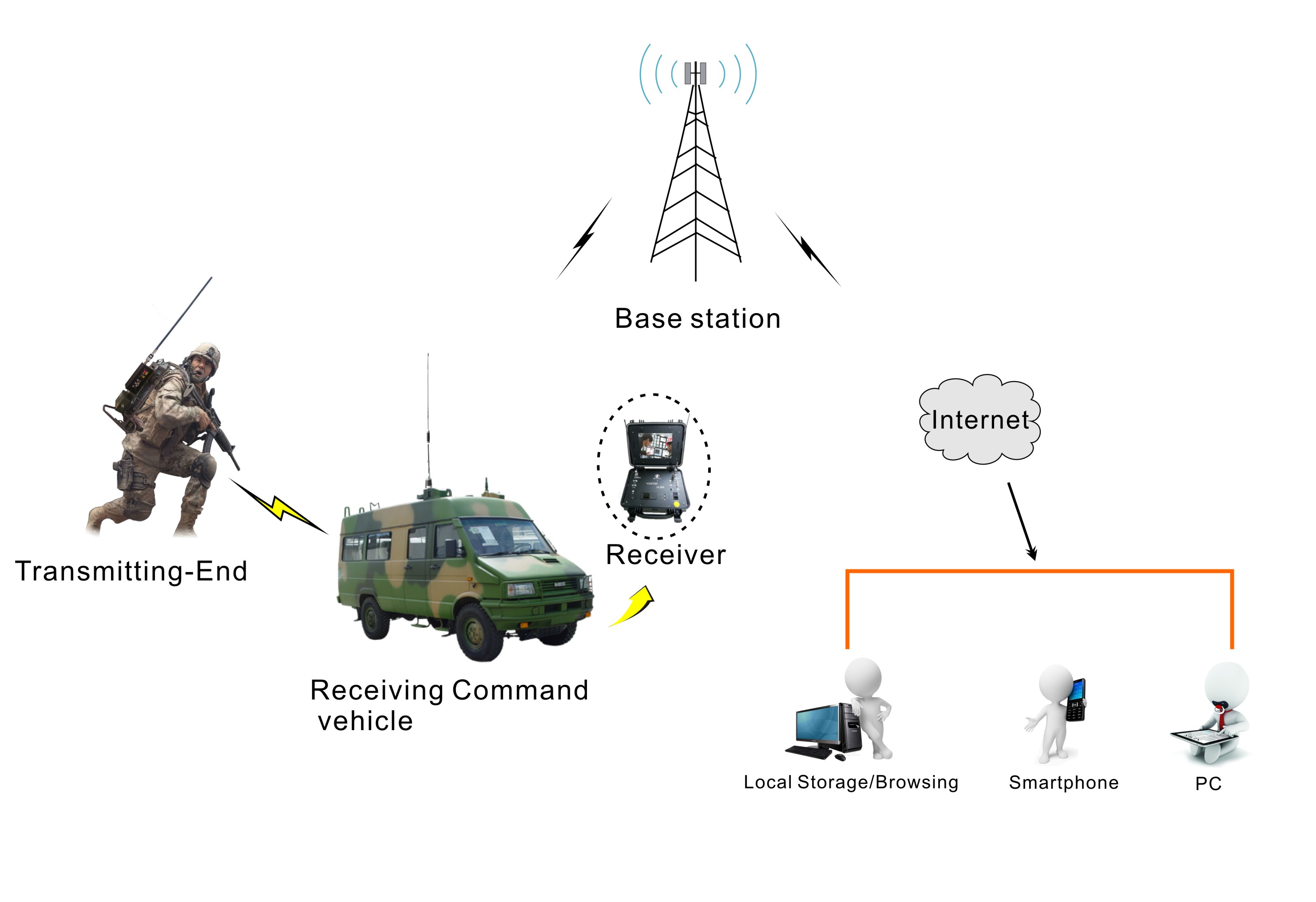

Walkie Talkie Transmission System Application:
